Electric pallet truck CBD15-AMC1 Li-ion
Indeks: 407300L1000
Quantity: 6
State: Available
Product Review
-
Reviews (0)
-
Latest
-
Latest

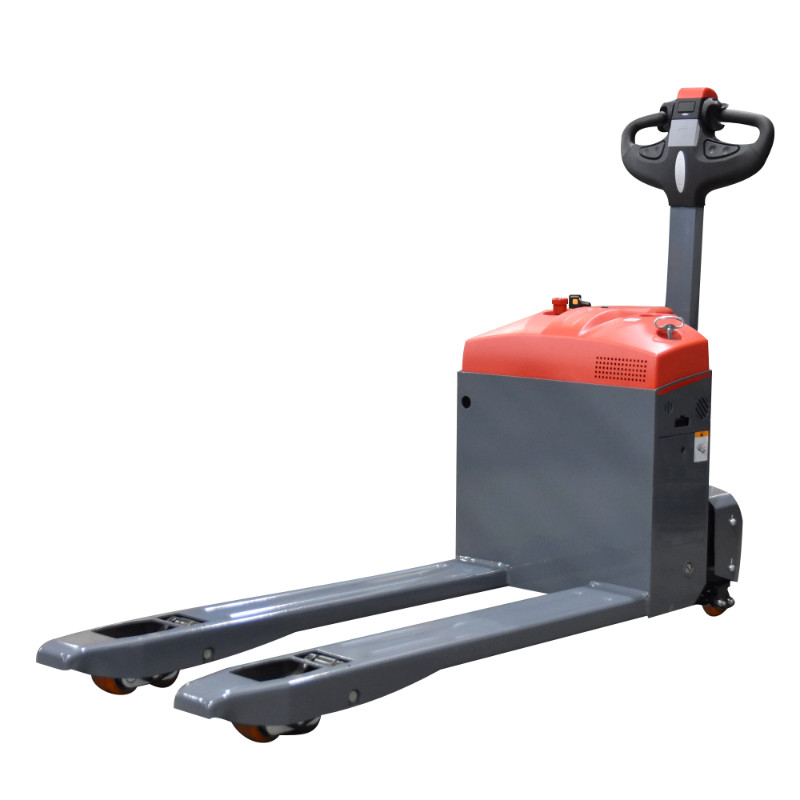

Electric pallet truck CBD15-AMC1 with Li-ion battery
The A-series CBD15 pallet truck is a high-tech, high-end equipment. This electric pallet truck is characterized by high strength without losing flexibility. The truck is great for industrial warehouses, supermarkets and industries with heavy production.
Key features of the CBD15-AMC1 electric pallet truck:
- Load capacity of 1500 kg: Sufficient for most warehouse operations.
- 0.65 kW traction motor: Provides excellent acceleration and low operating temperature.
- CURTIS control system: Guarantees precise and smooth control.
- Li-ion battery technology: Long-lasting and fast-charging, 24V voltage and 40Ah capacity.
- Regenerative braking: Recovers energy during braking.
- Waterproof electrical harness: prolongs life and prevents short circuits.
- High ergonomics: Compact design and modern appearance.
- Low noise emission: thanks to the hydraulic power unit.
Technical parameters of the CBD15-AMC1 pallet truck
- Maximum speed: 4.5/4.9 km/h with/ without load.
- Fork dimensions: 800/1000/1150 mm long, 160 mm wide.
- Turning radius: 1400/1600/1750 mm.
- Minimum fork height: 80 mm, maximum 200 mm.
- Climbing capacity: 6/15% loaded/unloaded
- .
Why choose CBD15-AMC1?
The CBD15-AMC1 is the ideal solution for companies looking for a reliable, efficient and eco-friendly pallet truck. Thanks to advanced technologies and robust construction, this electric pallet truck can reliably serve for years. Its ease of operation and solutions that relieve the burden on the operator are also a huge advantage. This electric pallet truck is definitely worth buying. Check out for yourself how much it can do for your warehouse!
Ask about product
Technical informations
- Producer
- Jazgot
- Distributor
- Jazgot
- Model
- CBD15-AMC1
- Load capacity
- 1500 kg
- Center of gravity of the load
- 600 mm
- Overall length
- 1340/1540/1690 mm
- Overall width
- 568 mm
- Minimum fork height
- 80 mm
- Fork spread
- 560 mm
- Turning radius
- 1400/1600/1750 mm
- Overall height (with mast)
- 1220 mm
- Drive
- electric
- Equipped with a platform for the operator
- no
- Lowering
- electric
- Lifting
- electric
- Weight with battery
- 230 kg
- Maximum fork height
- 200 mm
- Fork width
- 160 mm
- Fork length
- 800/1000/1150 mm
- Minimum width of the working corridor for a pallet of 800x1200 mm
- 1900 mm
- Maximum speed with load/without load
- 4.5/4.9 km/h
- Ability to climb slopes with load/without load
- 6/15 %
- Drive wheel dimensions
- 210x70 mm
- Fork roller dimensions
- 80x64 mm
- Dimensions of side wheels
- nie dotyczy
- Type of break
- electromagnetic
- Propulsion motor
- 0,65 Kw
- Lifting motor
- 0,80 kW
- Battery voltage
- 24 V
- Battery capacity
- 40 Ah
- Technology of battery
- Li-ion
- Number of installed batteries
- 1 pc.
- Steering system
- DC
- Sound intensity at the operator's ear
- 74 dB
- Charger
- portable
- Guarantee
- 12 months
Specific References
- ean13
- 1000001924397
