Pallet Truck LT10M Tilted Forks
Indeks: GL00129
Quantity: 5
State: Available
Product Review
-
Reviews (0)
-
Latest
-
Latest

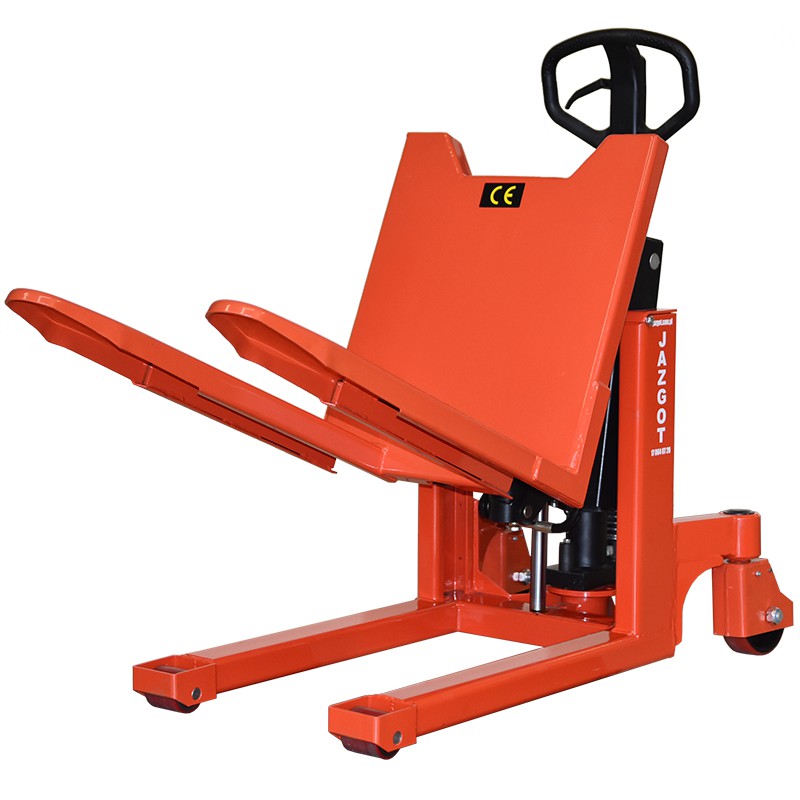

The LT10M is a compact pallet truck with an unconventional character. Its unique capabilities will appeal to many users looking for a pallet truck for special tasks. The pallet truck features a hydraulic system that allows lifting the load to a height of up to 30 cm, and then tilting it at an angle of almost 90 degrees! With this function, the operator can conveniently lift and tilt a basket or loading crate for easy access to the contents.
The lifting mechanism in this model is not a complex construction, unquestionably making the LT10M one of the more reliable manual pallet trucks. The lift is operated using a movable lever, a lowering handle from the tilt position, and a foot pedal for complete fork lowering. Brakes are responsible for safety during operation, effectively immobilizing it during stops.
Ask about product
Technical informations
- Load capacity
- 1000 kg
- Overall length
- 1325 mm
- Overall width
- 638 mm
- Lifting height
- 285 mm
- Minimum fork height
- 85 mm
- Fork spread
- 560 mm
- Fork width
- 160 mm
- Drive wheel dimensions
- 160x50 mm
- Fork roller dimensions
- 65x70 mm
- Wheel tread material
- poliuretan
- Guarantee
- 12 months
- Type of lifting
- manual
- Weight
- 178 Kg
- Fork deflection range
- 0-90°
- Safety certificate
- yes
