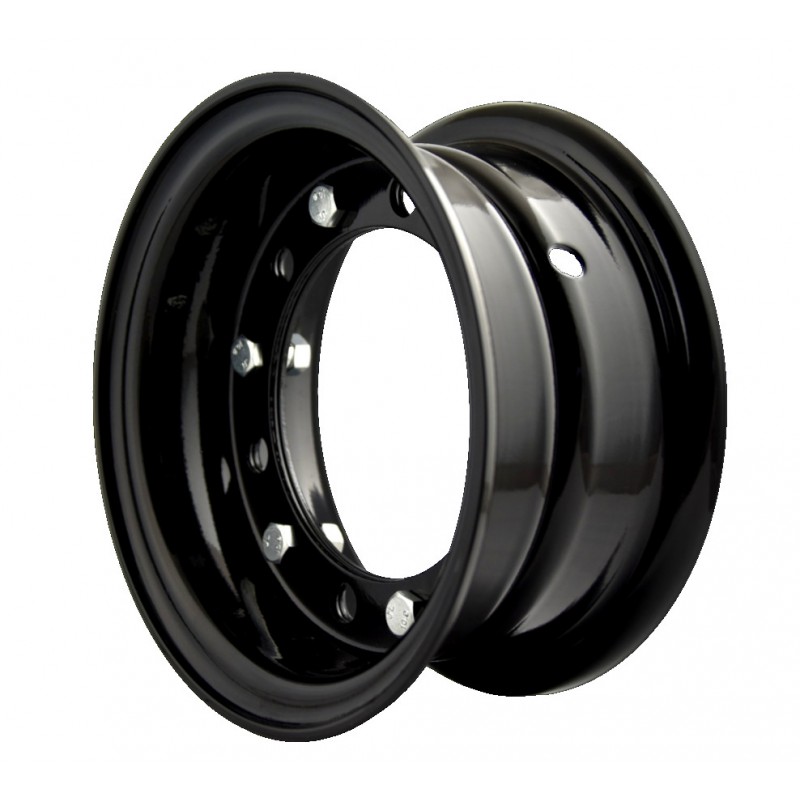

Rim 4.00E-9 (6.00-9) Toyota
Indeks: TA1027/4
Quantity: 83
State: Available
Product Review
-
Reviews (0)
-
Latest
-
Latest
The rim consists of two halves that are screwed together using the holes described in the drawing below "screw hole".
We also offer the sale of complete wheels ready to be mounted on a forklift on selected components from our store. Please ask sellers for details.
|
T (hole diameter) |
R (screw hole diameter) |
E diameter of the mounting hole |
V (rim diameter) |
A (rim width) |
W (spacing of screw holes) |
G (spacing of mounting holes) |
| mm | mm | mm | mm | mm | mm | mm |
| 150 | 13 | 17 | 267 | 130 | 180 | 90 |
 illustrative drawing |
||||||
| Number of mounting holes: |
6 |
|||||
| Material of construction | steel | |||||
| Designed for |
Forklifts: TCM FB15-V/-7/-7 front wheel TEU FB10~18 front wheel Komatsu FD20~25-12/-14/-16/-17 rear wheel Toyota 3-8FD20~25 rear wheel Mitsubishi FD20~25(F18B/F18C) rear wheel Dalian FD20~25TA rear wheel Tailift FD20~25 rear wheel R Series CPCD20~25 rear wheel |
|||||
| Part number |
281E4-40121 , B11E4-40121 , 3EB-28-00011 , 44209-22002-71 , 44209-22001-71 , |
|||||
Ask about product
Technical informations
- Piece number
- N120-211002-000
- Tire size
- 600x9
- Type
- Rim
