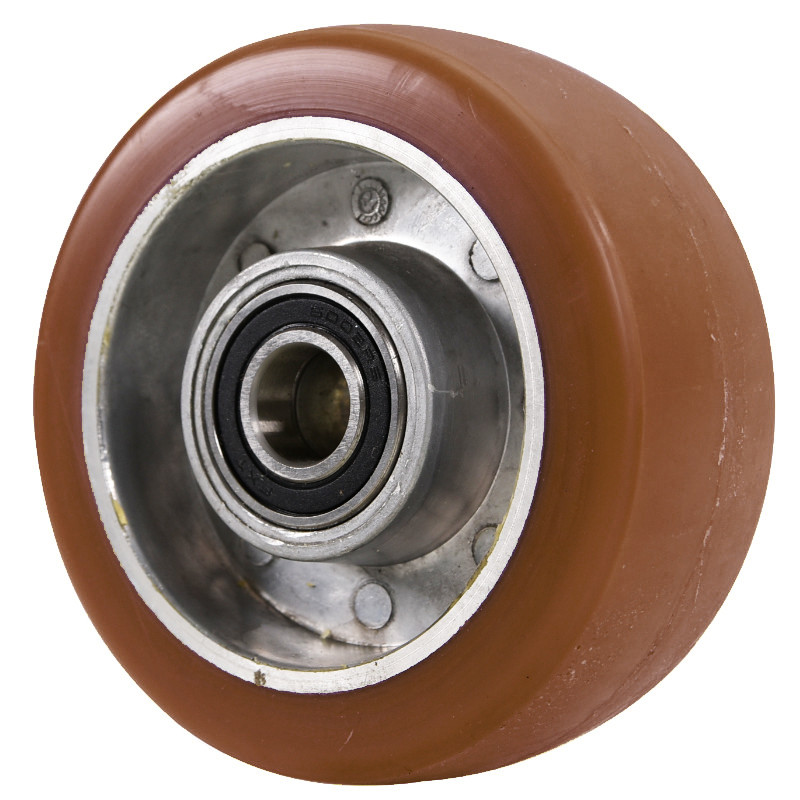

Support wheel 100x40 - 75/2KNL40, Still, Linde, Toyota, Jungheinrich

Indeks: WA114398

Quantity: 6

State: Available

£8.21 brutto

£8.21 netto

  • Total sales: 31

Product compliance details: Manufacturer responsible for the product

Product safety

JAZGOT

Manufacturer

In accordance with Regulation (EU) 2023/988 on general product safety (GPSR), we present below the safety rules for the use of wheels and rollers for pallet trucks.

Application

Wheels and rollers are running or drive components of manual and electric pallet trucks, providing load capacity, stability, and safe load transport.

Installation and mounting

  • Install only with the pallet truck secured and stationary, on a stable surface.
  • Use parts that fully match the manufacturer’s specification (dimensions, material, load rating).
  • After installation, verify free rotation and ensure no rubbing against chassis components.

Operation

  • Use on suitable floors; avoid sharp edges and severe unevenness that may damage treads or bearings.
  • Do not overload — respect the pallet truck and wheel/roller load ratings.
  • Inspect running surfaces and bearings regularly; replace damaged or excessively worn parts immediately.

Operating conditions

  • Use only in intended environments (e.g., dry warehouse floors). Avoid extreme moisture, chemicals, or very low temperatures unless specified by the manufacturer.

Maintenance

  • Remove dirt (dust, oil, debris) and check bearings routinely.
  • Lubricate bearings as required per manufacturer instructions.
  • Check fasteners and re-tighten periodically; looseness can lead to failures.

Transport and storage

  • Store in a dry, clean place, away from moisture and aggressive substances.
  • Protect from impacts and deformation during transport.

Disposal

Worn or damaged wheels/rollers should be taken to an appropriate metal/plastic recycling point. Do not dispose of with household waste.

Compare
Rating:
(0)

Product Review

Average rating

0.0
0 Review
★★★★★ Excellent 0
★★★★☆ Good 0
★★★☆☆ Medium 0
★★☆☆☆ Poor 0
★☆☆☆☆ Terrible 0

  • Reviews (0)
    • All reviews (0)
    • Has image/video (0)
    • Excellent (0)
    • Good (0)
    • Medium (0)
    • Poor (0)
    • Terrible (0)
  • Latest
    • Latest
    • Oldest
    • High rating
    • Low rating
    • Helpful
  • Latest
    • Latest
    • Oldest
    • Helpful

d

(bearing diameter)

d1

(bore diameter)

D

(circle diameter)

W

(hub width)

T

(tread width)
mm mm mm mm mm
32 15 100 40 40



Tread material Vulkollan
Hub material alluminium
Impact on the surface Non-marking
Contains a bearing yes
Application STILL, Jungheinrich forklift trucks

Ask about product

Please fill below informations. Customer service will contact with You soon as is possible.

* Required fields

Technical informations

Producer
Jazgot
Piece number
JUNG 51058754 / STILL 4413462
Wheel tread material
vulkollan
Guarantee
12 months
Inner diameter
15 mm
Application in the model of the truck
JUNGHEINRICH ECE 116
JUNGHEINRICH EJD 16
JUNGHEINRICH EJD 20
JUNGHEINRICH EJD 220
JUNGHEINRICH EJE-L 14
JUNGHEINRICH EJE-R 20
JUNGHEINRICH EJE-R24
JUNGHEINRICH EJE 16
JUNGHEINRICH EJE 30
JUNGHEINRICH EJE 112
JUNGHEINRICH EJE 116
JUNGHEINRICH EJE 118
JUNGHEINRICH EJE 120
JUNGHEINRICH EJE 135
JUNGHEINRICH EJE 145
JUNGHEINRICH EJE 220
JUNGHEINRICH EJE 222r
JUNGHEINRICH EJE 225
JUNGHEINRICH EJE 235
JUNGHEINRICH EJE KMS
JUNGHEINRICH EJE KMS 16
JUNGHEINRICH EJE KMS 20
JUNGHEINRICH ELE 16
JUNGHEINRICH ELE 20
JUNGHEINRICH ELS 12
JUNGHEINRICH ELS 18
Linde L14 AP 1173
Linde T16 360
Linde T18 360
Linde T20 360
STILL ECU 14
STILL ECU 16
STILL EGU 16
STILL EGU 18
STILL EGU 20
TOYOTA HWE 100
TOYOTA LW 13
TOYOTA LWE 13
TOYOTA PP 13
TOYOTA PPS 13
Rodzaj koła
support wheel / side wheel
Brand of pushchair
Jungheinrich
Linde
Still
Toyota
Wheel diameter (mm)
100
Wpływa na nawierzchnię
non-marking
Includes bearing
tak
OEM
Jungheinrich 27634540, 50303847
Linde 0009933800
Still 4413462
