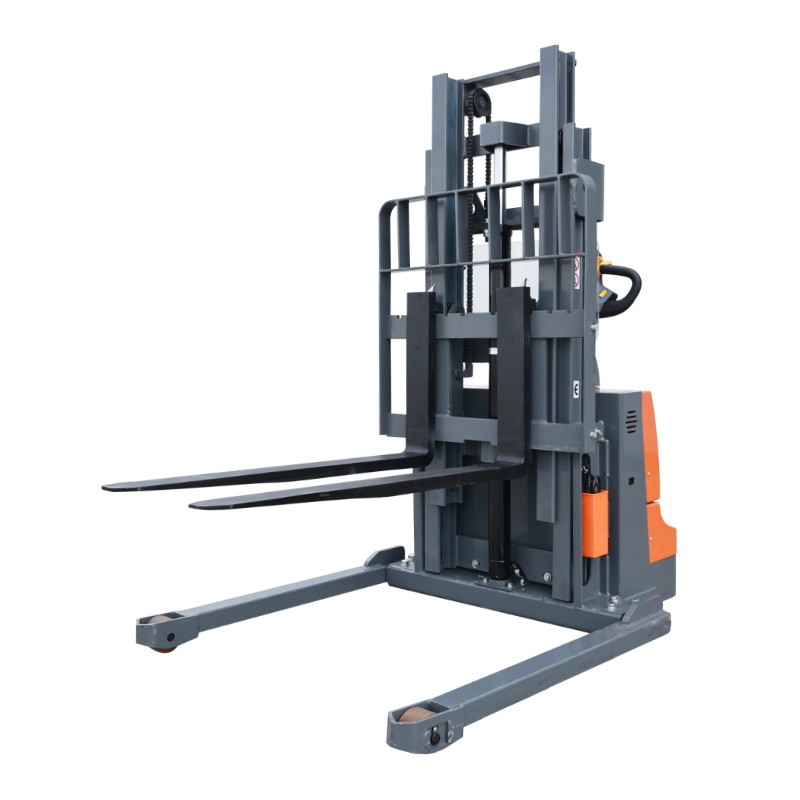

Specialized lift truck ESS15-ES
Indeks: ESS15-ES 3,3
Quantity: 1
State: Available
Product Review
-
Reviews (0)
-
Latest
-
Latest
The demand for non-standard tasks necessitates innovation in the lifting industry. Transporting loads with atypical dimensions requires unconventional transport units such as a platform or pallet. The loading and unloading process of non-standard freight involves the use of specialized equipment.
The compact size of the high-stacking pallet truck in relation to the fork spread provided by the carriage makes the presented mast pallet truck flexible.
The fully electric mast truck ESS15-ES allows for effortless driving and control of lifting and lowering the load. The control levers and fork height adjustment buttons are conveniently located close to each other on the handle, ensuring comfortable operation of the pallet truck.
This specialized machine can lift a load of up to 1.5 tons to a height ranging from 2 to 3.5 meters.
Navigating narrow aisles and high lifting capacity do not compromise the high safety standards of the ESS15-ES. The robust and widely spaced construction contributes to the stability of the lifting device.
The implemented lithium-ion battery (Li-ion) with increased capacity of up to 100Ah and a voltage of 24V allows for up to 3 hours of continuous operation.
The charger is integrated with the device, eliminating the need for a designated charging area for the pallet truck; a standard electrical outlet is sufficient. The specially designed cable storage compartment ensures that all charging accessories are always with the pallet truck.
The multi-functional high-stacking device ESS15-ES will undoubtedly meet the expectations of the most demanding customers.
|
Truck load capacity at 500 mm centre of gravity |
|
|
at fork height (mm) |
maximum load weight (kg) |
| ≤1600 | - |
| ≤2000 | - |
| ≤2500 | - |
| ≤3000 | 1500 |
| ≤3300 | 1250 |
| ≤3500 | 1150 |
| ≤4000 | - |
| ≤4500 | - |
| ≤4800 | - |
| ≤5000 | - |
| ≤5500 | - |
Ask about product
Technical informations
- Load capacity
- 1500 kg
- Center of gravity of the load
- 600 mm
- Overall length
- 1520 mm
- Overall width
- 1140 mm
- Minimum fork height
- 35 mm
- Fork spread
- regulated- max 610 mm
- Drive
- electric
- Equipped with a platform for the operator
- no
- Lowering
- electric
- Lifting
- electric
- Maximum fork height
- 2000 / 2500 / 3000 / 3300 / 3500 mm
- Fork length
- 1070 mm
- Maximum speed with load/without load
- 4.6 / 4.7 km/h
- Drive wheel dimensions
- 210x75 mm
- Material of the rollers and wheels tread
- Polyurethane
- Type of break
- electromagnetic
- Max lifting speed with load/without load
- 75/110 mm/s
- Max lowering speed with load/without load
- 145/100 mm/s
- CE Declaration of Conformity
- yes
- Guarantee
- 12 months
- Mast in the folded state
- 1535 / 1770 / 2015 / 2170 / 2265 mm
- Weight
- 570 / 580 / 600 / 610 / 630 kg
- Drive motor power
- 2.2 kW
- Dimensions of the front/caster wheel
- 100 x 60 mm
- Working time
- 3 h
- Distance between ramps
- 957 mm
Specific References
- EAN13
- 1000001906980
