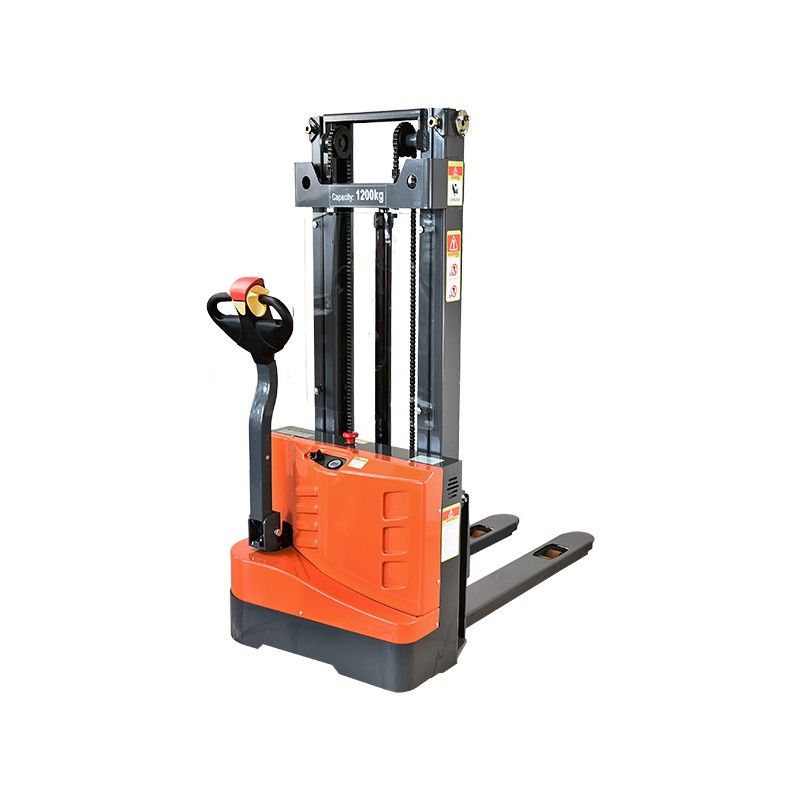

Electric Forklift 1200/3500 (kg/mm)

Technical informations

Model

WS12S-3500

Load capacity

1200 kg

Center of gravity of the load

600 mm

Overall length

1770 mm

Overall width

820 mm

Lifting height

3500 mm

Minimum fork height

90 mm

Fork spread

560 mm

Turning radius

1440mm

Drive

electric

Equipped with a platform for the operator

no

Lowering

electric

Lifting

electric

Weight with battery

590kg

Fork width

160 mm

Fork length

1150 mm

Minimum width of the working corridor for a pallet of 800x1200 mm

2175 mm

Maximum speed with load/without load

2.5/3.0 km/h

Fork roller dimensions

80x60 mm

System of rollers and wheels

1x steering wheel, 1x side wheel, 4x front wheels

Wheel tread material

poliuretan

Dimensions of side wheels

124x50 mm

Type of break

electromagnetic

Propulsion motor

0,65 Kw

Lifting motor

2,2 kW

Battery voltage

12 V

Battery capacity

75 Ah

Technology of battery

Gel

Number of installed batteries

2 pcs.

Steering system

DC

Max lifting speed with load/without load

75/150 mm/s

Max lowering speed with load/without load

145/80 mm/s

Maximum mast height

3940mm

Minimum mast height

2230 mm

Dimensions of the steering wheel

220x70 mm

CE Declaration of Conformity

yes

Guarantee

12 months
