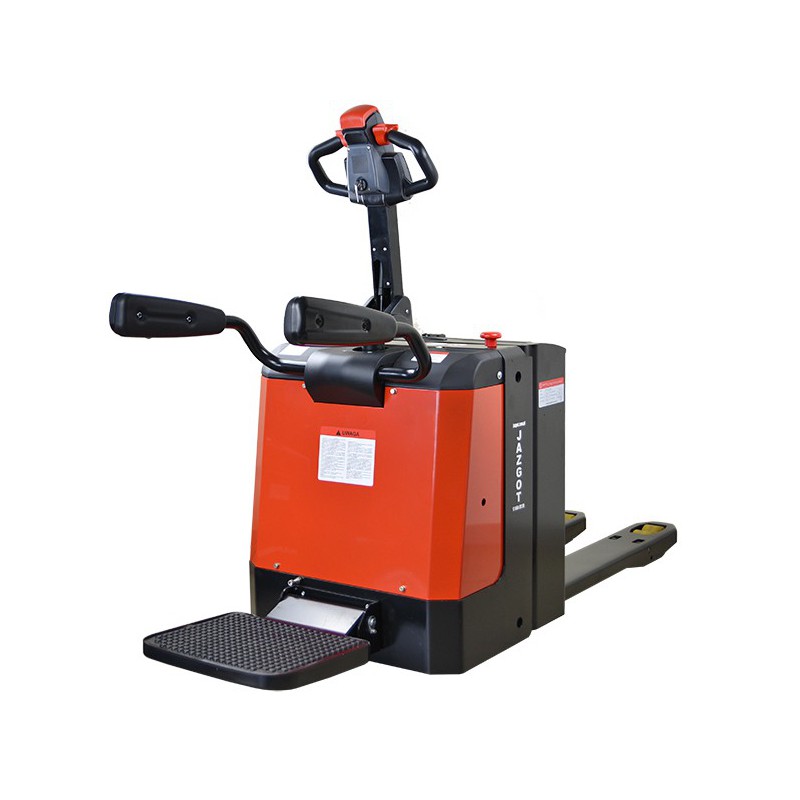

Electric Pallet Truck 2000 kg, EPT20-20RA

Technical informations

Distributor

Jazgot

Model

EPT20-20RA

Load capacity

2000 kg

Center of gravity of the load

600 mm

Overall length

1860/1930 mm

Overall width

730 mm

Minimum fork height

85 mm

Fork spread

540 mm

Turning radius

1700 mm

Overall height (with mast)

1150/1470 mm

Drive

electric

Equipped with a platform for the operator

no

Lowering

electric

Lifting

electric

Weight with battery

670 kg

Maximum fork height

125 mm

Fork width

170 mm

Fork length

1150 mm

Minimum width of the working corridor for a pallet of 800x1200 mm

2184 mm

Maximum speed with load/without load

5,5/6 km/h

Ability to climb slopes with load/without load

8/16 %

Drive wheel dimensions

230x75 mm

Fork roller dimensions

85x70 mm

System of rollers and wheels

1x steering wheel, 1x side wheel, 4x front wheels

Dimensions of side wheels

130x60 mm

Type of break

electromagnetic

Propulsion motor

1,5 kW

Lifting motor

0,84 kW

Battery voltage

24 V

Battery capacity

210 Ah

Technology of battery

Traction

Number of installed batteries

1 pc.

Steering system

AC

Sound intensity at the operator's ear

74 dB

Charger

portable

Guarantee

12 months
