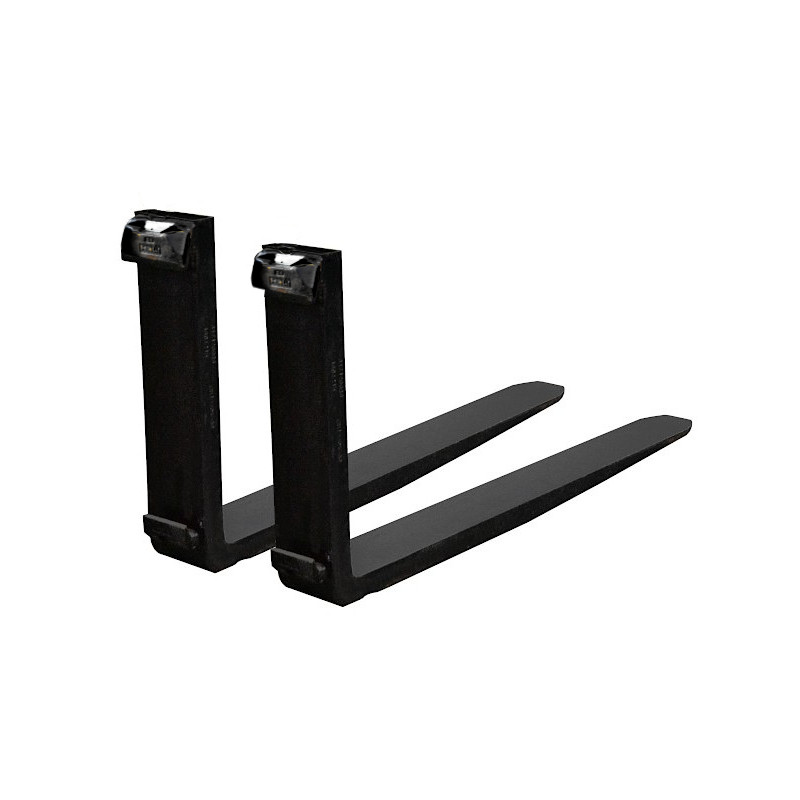

Forklift truck forks 150x55x1520 mm
Indeks: 150*55*1520
Quantity: 6
State: Available
The forks are sold in pairs, i.e. 2 each.
Product Review
-
Reviews (0)
-
Latest
-
Latest
Forks for Forklift 150x55x1520 mm, HELI
HELI forks are made of high-quality structural steel. They can be mounted on forklifts of various brands with carriage class 3A and a load capacity of up to 5000 kg.
- • Profile dimensions: 150 mm x 55 mm
- • Fork length: 1520 mm
- • Load capacity: 5000 kg
- • Carriage class: 3A
 |
Safety pin
The forks are sold as a set with a safety pin that prevents accidental slipping off the forklift during operation and maneuvering. |
Check before purchase
|
1. Confirm the forklift carriage class 3A ISO 2328 and the height between the hooks 508 mm. |
2. Check whether the profile dimensions 150x55 mm match the transported loads. |
3. Verify the length 1520 mm in relation to the required load support surface. |
How to check the forklift carriage class and fork condition before replacement?
Before purchasing new forks, the forklift carriage class should be verified according to ISO 2328. In class 3A, the carriage height is approximately 508 mm. The easiest way to check this is by measuring the distance in the hook area (between the upper and lower hooks) or by referring to the forklift’s technical documentation. If in doubt, a photo of the nameplate is usually sufficient to quickly confirm compatibility.
Forks must be replaced when the thickness of the working section decreases by approximately 10% compared to the nominal dimension, or when cracks, permanent deformations or twisting of the profile occur. Worn forks reduce the actual load capacity of the forklift and increase the risk of load damage. Regular inspection of the cross-section and symmetry of both forks contributes to operational safety and compliance with the requirements of the Technical Inspection Authority (UDT).
FAQ
Can the forks be replaced individually?
No. Forks should be replaced in pairs to ensure even load distribution and forklift stability.
When should the forks be replaced?
In case of permanent deformation, cracks, twisting, or significant cross-section wear. Damaged forks should not be used further.
What does fork class 3A (ISO 2328) mean?
This is a standard for mounting dimensions. In class 3A, the carriage height is 508 mm. Matching the class is required for proper fork installation.
Is a safety pin included with the forks?
Yes. A safety pin is included with the forks to prevent them from slipping off the forklift.
Ask about product
Technical informations
- Producer
- Heli
- CE Declaration of Conformity
- yes
- Guarantee
- 12 months
