Forklift truck fork with additional hook 100x40x1200mm
Indeks: H100*40*1200
Quantity: 2
State: Available
The forks are sold in pairs, meaning 2 pieces each.
The price is for 1 fork.
Product Review
-
Reviews (0)
-
Latest
-
Latest

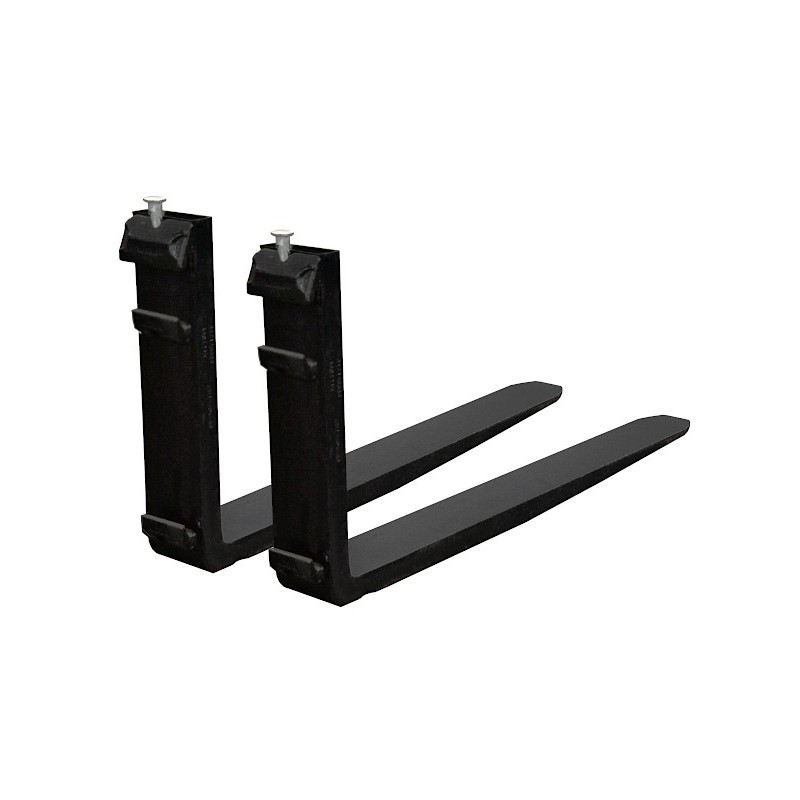

Forks for Forklift Trucks 100x40x1200 mm
The forks are made of high-quality structural steel. They are universally applicable and can therefore be mounted on forklift trucks of various brands while maintaining the fork class and load capacity.
- • Profile dimensions: 100 x 40 mm
- • Load capacity: 2500 kg
- • Fork class: 2A
- • Fork length: 1200 mm
 |
Locking pin
The forks are sold with a locking pin that prevents accidental slipping off the carriage during operation and maneuvering. |
Before purchase
|
CHECK THE COMPATIBILITY OF THE CARRIAGE CLASS
|
MATCH THE PROFILE DIMENSIONS TO THE LOAD DIMENSIONS
|
VERIFY THE FORK LENGTH IN RELATION TO THE REQUIRED SUPPORT SURFACE
|
How to check the carriage class and the condition of the forks before replacement?
Before selecting forks, compliance of the fork class must be confirmed according to the ISO 2328 standard. This standard defines the height and spacing of the mounting hooks. The classes differ by the distance between the upper and lower hook. In class 2A, this distance is approx. 407 mm. The letter designation (A or B) refers to the coupling design (hook type). The class can be verified by measuring the distance between the upper and lower hook of the fork, by reading the forklift nameplate, or in the manufacturer’s technical documentation. Correct matching of the fork class to the forklift carriage class is a prerequisite for safe installation and operation.
Before replacement, the technical condition of the existing forks should also be assessed. Forks must be replaced if the thickness of the working section has decreased by approx. 10% compared to the nominal dimension, if they show cracks in the hook area or at the heel, or if they have permanent deformations or twists of the profile. Cross-section wear results in an actual reduction of the forklift’s load capacity and may be questioned during a UDT inspection.
FAQ
CAN FORKS BE REPLACED INDIVIDUALLY?
No. Forks should be replaced in pairs to ensure even load distribution and stability during forklift operation.
WHEN SHOULD FORKS BE REPLACED?
In case of permanent deformation, breakage, twisting, or significant cross-section wear. Damaged forks should not be used further.
WHAT DOES CLASS 2A MEAN?
Fork class 2A is a designation according to the ISO 2328 standard, which defines the dimensions and type of mounting hooks for forklift forks. In class 2A, the distance between the upper and lower hook is approx. 407 mm. The letters A and B indicate the hook type (suspension profile). The forklift carriage class must match the fork class to ensure correct and safe installation.
IS THE HOOK ATTACHMENT EQUIPPED WITH A LOCKING DEVICE?
Yes. A locking pin is included with the forks to prevent them from sliding off the forklift carriage.
