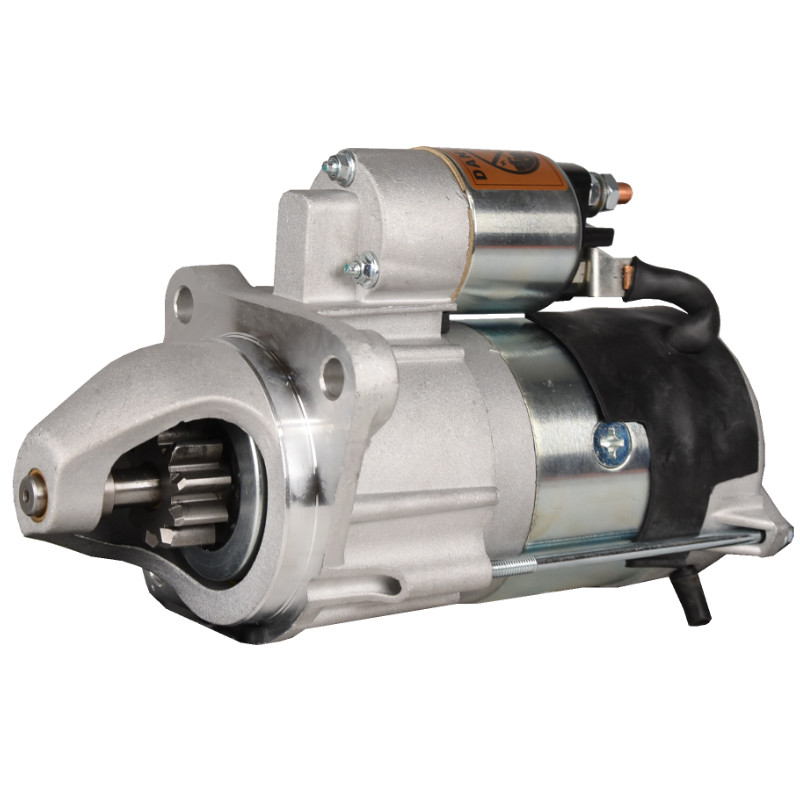

JCB 2CX 3CX 4CX 926 TIER 2 starter, 12V 3.0kW, 714/40531A2

Indeks: 406224

Quantity: 55

State: Available

£57.41 brutto

£57.41 netto

Product compliance details: Manufacturer responsible for the product

Product safety

JAZGOT

Manufacturer

Warnings and safety information

  • CE Mark
    CE Mark

    Has the CE mark (complies with EU standards).

Safety Information

In accordance with Regulation (EU) 2023/988 on General Product Safety (GPSR), below are the rules for the safe use of the starter motor for forklift trucks:

Application

The starter motor is part of the starting system of a forklift with a combustion engine. Its function is to start the engine by turning the crankshaft. A properly functioning starter motor is essential for starting the vehicle.

Usage rules

  • Use only in the forklift models and engines for which it is intended.
  • Installation should be carried out by a qualified mechanic in accordance with the manufacturer’s instructions.
  • Before starting work, disconnect the battery and secure the electrical system.
  • After installation, check the wiring and test the starter motor under safe conditions.

Precautions

  • Do not use a starter motor with visible damage or burn marks.
  • Avoid short circuits, loose connections, and installation in damp environments.
  • Incorrect wiring may damage the starter motor or the electrical system.
  • If malfunctions occur (slow cranking, grinding noises, no response), stop use immediately and perform an inspection.

Support and reporting

If you have questions regarding installation, operation or compatibility of the product, please use the contact form available on the Allegro platform.

Disposal

A used starter motor must be taken to an electrical and electronic waste collection point in accordance with applicable regulations.

Compare
Rating:
(0)

Product Review

Average rating

0.0
0 Review
★★★★★ Excellent 0
★★★★☆ Good 0
★★★☆☆ Medium 0
★★☆☆☆ Poor 0
★☆☆☆☆ Terrible 0

  • Reviews (0)
    • All reviews (0)
    • Has image/video (0)
    • Excellent (0)
    • Good (0)
    • Medium (0)
    • Poor (0)
    • Terrible (0)
  • Latest
    • Latest
    • Oldest
    • High rating
    • Low rating
    • Helpful
  • Latest
    • Latest
    • Oldest
    • Helpful

Starter motor JCB 2CX / 3CX / 4CX / 926 – 12V, 3.0 kW, 10 teeth

Starter motor designed for JCB machines, including 2CX, 3CX, 4CX and 926 models with Perkins RE RG engines. It operates on a 12V system and delivers 3.0 kW of power. This version features a 10-tooth starter drive and a three-point mounting configuration.

Application

Starter motor used in machines:

  • JCB 2CX
  • JCB 3CX
  • JCB 4CX
  • JCB 926
  • JCB TM300

It is used across different variants of these models, so proper selection should be based on technical parameters rather than the machine name alone.

Operating parameters and starting system

The design is based on a planetary gear system (PLGR), which provides high starting torque while maintaining compact dimensions.

The 12V supply and 3.0 kW output define the operating range of this version.

The 10-tooth starter drive ensures proper engagement with the flywheel ring gear.

Construction

The housing has an extended form typical for this class of starter motors.

Mounting is based on a three-point configuration.

The solenoid is integrated into the unit and controls the engagement of the starter mechanism.

Electrical terminals are located on the top and side of the housing.

Dimensions

The total length is approximately 300 mm. This parameter affects installation and should be compared with the existing unit.

Identification

This starter motor is available under multiple OEM numbers, including:

  • 714/40531A2
  • 714/40531
  • 714/40231
  • 714/40536
  • 714/40159 / 714/40159R

Technical specifications

Voltage 12V
Power 3.0 kW
Number of teeth 10
Mounting holes 3
Total length approx. 300 mm
Application JCB 2CX, 3CX, 4CX, 926, TM300

Ask about product

Please fill below informations. Customer service will contact with You soon as is possible.

* Required fields

Technical informations

Producer
Jazgot
Overall length
300 mm
Application
JCB
CE Declaration of Conformity
yes
Guarantee
12 months
Rated power
3 kW
Voltage
12 V
Number of mounting holes
3
Application in the model of the truck
JCB 2CX 3CX 4CX 926 TM300
Application in the engine model
PERKINS RE RG 1103C 1104D
Number of splines
10
OEM
11.131.793 11.131.942 11.131.947 11.131.956 11.131.989 11.132.036 AZE4150 AZE4170 AZE4173 AZE4175 AZE4197 AZE4201 AZE4204 AZE4215 AZE4220 IS1201 63280041 MSN8041 MS399 2873K405 2873K624 2873K625 2873K626 2873K634 3586849 3873K627 860715 68296 IS1378*
714/40531A2 714/40531 714/40231 26194600 29194800 7169477 114388 225-3149 312-7540 329-0290365-3422 9HT12010A6A 714/40159 714/40159R 714/40536 18940 11.131.605 11.131.761 11.131.781
