Starter motor for JCB JS175-JS260 24V 4.5 kW

Indeks: 406227

Quantity: 36

State: Available

£62.34 brutto

£62.34 netto

  • Total sales: 1

Product compliance details: Manufacturer responsible for the product

Product safety

JAZGOT

Manufacturer

Warnings and safety information

  • CE Mark
    CE Mark

    Has the CE mark (complies with EU standards).

Safety Information

In accordance with Regulation (EU) 2023/988 on General Product Safety (GPSR), below are the rules for the safe use of the starter motor for forklift trucks:

Application

The starter motor is part of the starting system of a forklift with a combustion engine. Its function is to start the engine by turning the crankshaft. A properly functioning starter motor is essential for starting the vehicle.

Usage rules

  • Use only in the forklift models and engines for which it is intended.
  • Installation should be carried out by a qualified mechanic in accordance with the manufacturer’s instructions.
  • Before starting work, disconnect the battery and secure the electrical system.
  • After installation, check the wiring and test the starter motor under safe conditions.

Precautions

  • Do not use a starter motor with visible damage or burn marks.
  • Avoid short circuits, loose connections, and installation in damp environments.
  • Incorrect wiring may damage the starter motor or the electrical system.
  • If malfunctions occur (slow cranking, grinding noises, no response), stop use immediately and perform an inspection.

Support and reporting

If you have questions regarding installation, operation or compatibility of the product, please use the contact form available on the Allegro platform.

Disposal

A used starter motor must be taken to an electrical and electronic waste collection point in accordance with applicable regulations.

Compare
Rating:
(0)

Product Review

Average rating

0.0
0 Review
★★★★★ Excellent 0
★★★★☆ Good 0
★★★☆☆ Medium 0
★★☆☆☆ Poor 0
★☆☆☆☆ Terrible 0

  • Reviews (0)
    • All reviews (0)
    • Has image/video (0)
    • Excellent (0)
    • Good (0)
    • Medium (0)
    • Poor (0)
    • Terrible (0)
  • Latest
    • Latest
    • Oldest
    • High rating
    • Low rating
    • Helpful
  • Latest
    • Latest
    • Oldest
    • Helpful

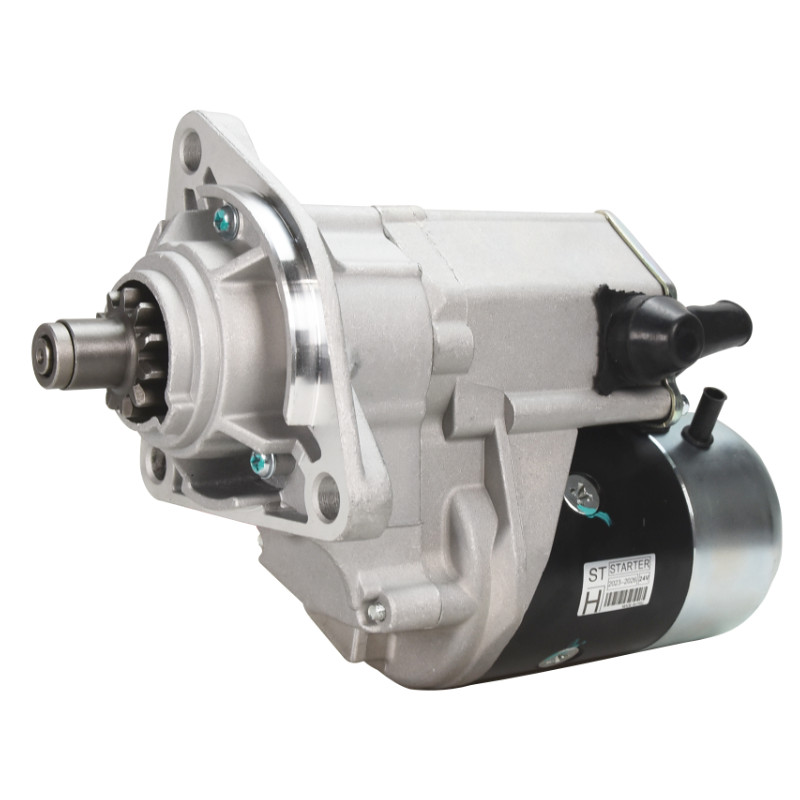

Starter motor for JCB JS175 / JS260 – 24V, 4.5 kW, 11 teeth

Starter motor designed for JCB machines from the JS series. Its construction matches the system used in these units and is adapted to Isuzu engines installed in this range of models.

Application

Model used in machines:

  • JCB JS175
  • JCB JS175W
  • JCB JS180
  • JCB JS190
  • JCB JS200
  • JCB JS210
  • JCB JS220
  • JCB JS240
  • JCB JS260

Operating parameters and starter drive

The starter motor operates on a 24V electrical system and delivers 4.5 kW of power.

It is equipped with an 11-tooth starter drive that engages with the flywheel ring gear in these units.

Mounting and design

The starter motor is mounted on three points, and its housing ends with a flange fitted to the engine housing.

The solenoid is integrated into the assembly and controls the engagement of the starter drive during operation.

Electrical terminals are located on the solenoid housing.

Part identification

Reference number:

  • 714/40280A

OEM numbers:

  • 0-21000-3291
  • 0-21000-3600
  • 028000-6200
  • 1811001410
  • 714/25500
  • 714/36000

Technical specifications

Voltage 24V
Power 4.5 kW
Number of teeth 11
Mounting holes 3
Application JCB JS175, JS175W, JS180, JS190, JS200, JS210, JS220, JS240, JS260
Part number 714/40280A

Ask about product

Please fill below informations. Customer service will contact with You soon as is possible.

* Required fields

Technical informations

Producer
Jazgot
Piece number
714/40280A
Application
JCB
CE Declaration of Conformity
yes
Guarantee
12 months
Rated power
4,5 kW
Voltage
24V
Number of mounting holes
3
Application in the model of the truck
JCB JS175, JS175W, JS180, JS190, JS200, JS210, JS220, JS240, JS260 (z silnikiem Isuzu)
Application in the engine model
Isuzu
Number of splines
11
OEM
0-21000-3291, 0-21000-3600, 0-21000-3650, 0-21000-3660, 0-21000-3661, 0-21000-4470, 0-21000-4471, 0-23000-1030, 0-23000-1031, 0-23000-1032, 0-23000-1033, 0-23000-1050, 0-23000-1060, 0-23000-1061, 0-23000-1670, 0-23000-3000,
0-23000-3010, 0-23000-3016, 0-23000-3661, 028000-6200, 028000-6201, 028000-6202, 1811001410, 1-81100141-1, 1811001891, 5811000180, 5811000252, 5811001180, 714/40280, F032110580, S25-100, S25-100A, S25-103, S25-135, S25-135A
714/25500, 714/36000
