Indeks: 405020
Quantity: 0
State: Inaccessible

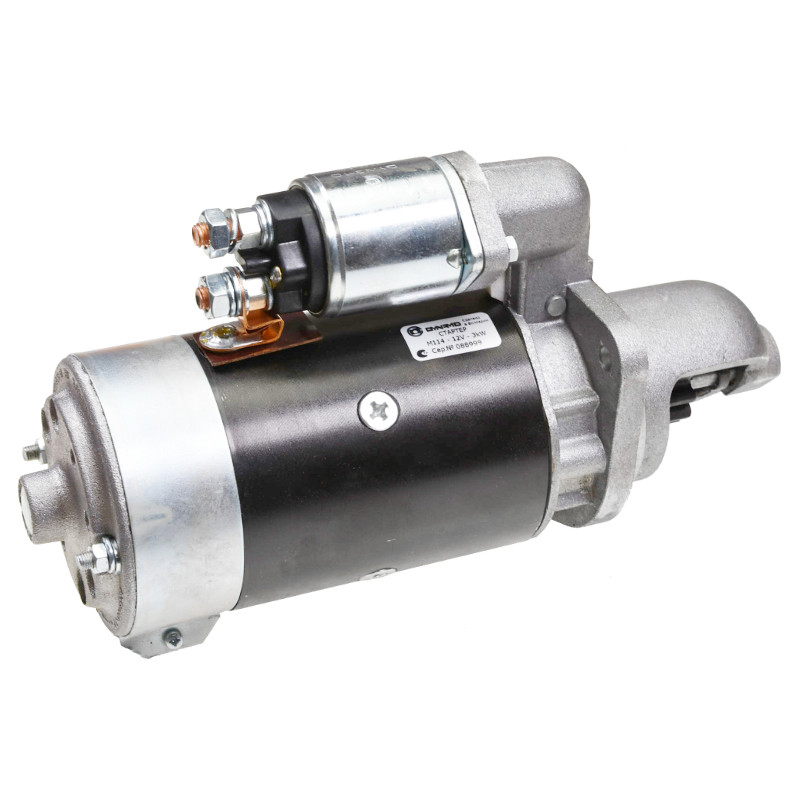

Starter motor designed for Balkancar DV1792 forklift trucks with Perkins MF-3 (4-cylinder) engine. It operates on a 12V system and delivers 3.0 kW of power. It is equipped with an 11-tooth starter drive, and the mounting is based on a three-point configuration.
Model used in forklift trucks:
Solution used in older machine designs.
The housing has a classic extended form with a total length of approximately 300 mm.
Mounting is based on a three-point configuration.
The solenoid is integrated into the unit and controls the engagement of the starter mechanism.
Electrical terminals are located on the top and side of the housing.
| Voltage | 12V |
| Power | 3.0 kW |
| Number of teeth | 11 |
| Mounting holes | 3 |
| Total length | approx. 300 mm |
| Application | Balkancar DV1792 |
Technical informations
