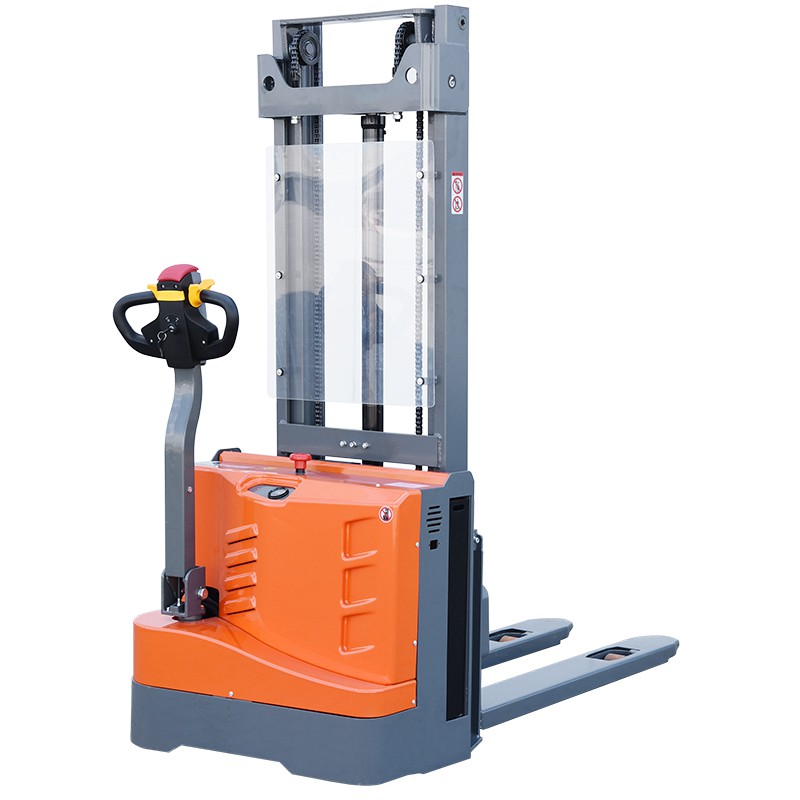

Li-ion electric stacker truck

Technical informations

Producer

Jazgot

Load capacity

1200 kg

Center of gravity of the load

600 mm

Overall length

1860 mm

Overall width

820 mm

Lifting height

3000 mm
3300 mm

Minimum fork height

90 mm

Fork spread

560 mm

Turning radius

1408 mm

Drive

electric

Equipped with a platform for the operator

no

Lowering

electric

Lifting

electric

Fork width

160 mm

Fork length

1150 mm

Minimum width of the working corridor for a pallet of 800x1200 mm

2150 mm

Maximum speed with load/without load

2,5/3,0 km/h

Drive wheel dimensions

210x75 mm

Fork roller dimensions

80x60 mm

System of rollers and wheels

1x steering wheel, 1x side wheel, 4x front wheels

Wheel tread material

poliuretan

Dimensions of side wheels

100x60 mm

Type of break

electromagnetic

Propulsion motor

0,75 kW

Battery capacity

60 Ah
100 Ah

Technology of battery

Li-ion

Number of installed batteries

1 pc.

Steering system

AC

Max lifting speed with load/without load

75/150 mm/s

Max lowering speed with load/without load

145/80 mm/s

Minimum mast height

1980 mm

CE Declaration of Conformity

yes

Guarantee

12 months

Additional equipment

Speed control potentiometer, a CURTIS battery charge indicator, protective plexiglass, and a current disconnect switch

Voltage

24V

Safety certificate

yes

Specific References

EAN13

1000001898230
