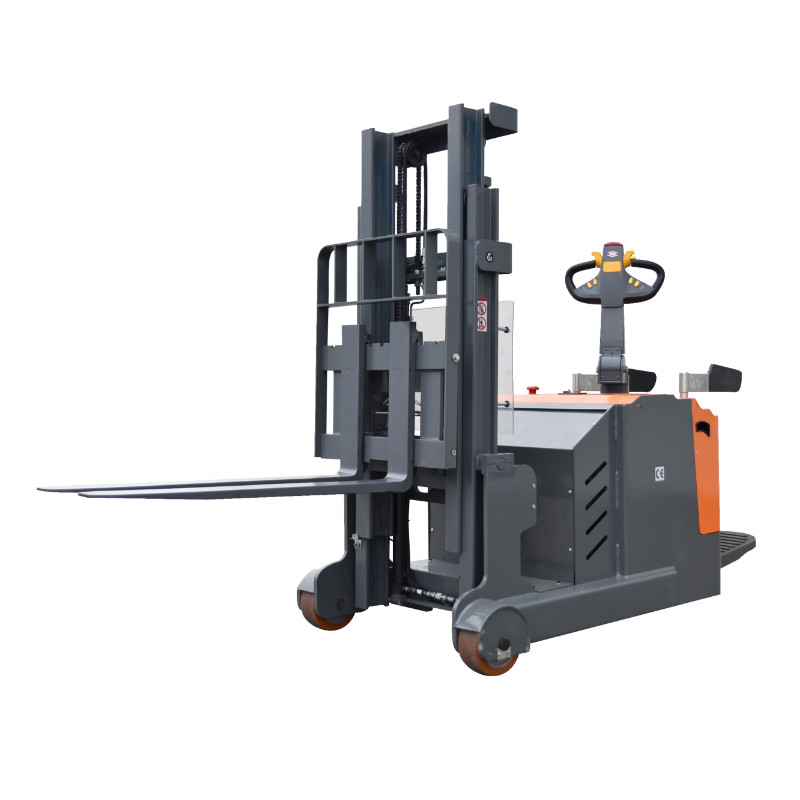

Electric stacker ESC10, lifting capacity 1T, lifting 2m
Indeks: 406009/2
Quantity: 0
State: Inaccessible
Product Review
-
Reviews (0)
-
Latest
-
Latest
Jazgot Company, as part of its innovation in forklift equipment for both standard market needs and unique solutions tailored to individual customers, is expanding its product range with new equipment for special tasks.
The electric pallet truck with mast ESC10 is one of the offerings in the specialized warehouse equipment category. One of the many advantages of this stacker is the use of a carriage from a forklift, allowing for customization or adaptation of hanging attachments. The technical parameters limit the expansion possibilities of fork or hook attachments, so it is advisable to coordinate them with the sales representative before purchase.
Another unique feature of the mast platform truck 406009/2 is the tilting carriage of the truck, providing the ability to tilt and incline the forks relative to the ground. The tilt function is crucial when transporting loads such as liquids, fluids, oils, bulk materials, or other specialized goods. The platform fork will allow us to adjust the position of the cargo relative to the ground or other cargo needs.
ESC10 comes in three tonnage configurations, with possible models having lifting capacities of 1T, 1.5T, and 2T. Depending on the version, some parameters may change. Technical data in the specification section refer to the 1T version.
Despite the robust construction of this electric truck, foldable protective railings and the operator's platform enable entry, unloading, and loading in narrow warehouse spaces.
During the transport of unconventional loads, protecting the operator's face is crucial. ESC10 features a protective shield that hinders the possibility of sparks or impacts on the operator, even from the smallest elements of the cargo.
The offered electric stacker is equipped with a high-capacity 210Ah lead-acid battery, allowing for many hours of operation. The included charger ensures the safe and quick charging of our work tool.
Ask about product
Technical informations
- Overall length
- 3080 mm
- Overall width
- 990 mm
- Lifting height
- 2000 mm
- Minimum fork height
- 30 mm
- Turning radius
- 1463 mm
- Equipped with a platform for the operator
- yes
- Weight with battery
- 2115 kg
- Minimum width of the working corridor for a pallet of 800x1200 mm
- 3036 mm
- Maximum speed with load/without load
- 5/5,3 km/h
- Propulsion motor
- 1,5 kW
- Lifting motor
- 2,2 kW
- Battery voltage
- 24 V
- Battery capacity
- 210 Ah
- Steering system
- AC
- Max lifting speed with load/without load
- 0.108 / 0.147 m/s
- Max lowering speed with load/without load
- 0,145 / 0,08 m/s
- Maximum mast height
- 2800 mm
- Minimum mast height
- 1560 mm
- Dimensions of the steering wheel
- 230x75 mm
- Guarantee
- 12 months
- Fork dimensions
- standard 100 / 30 / 1070 mm
- Dimensions of the front/caster wheel
- 210 x 85 mm
- Voltage
- 24V
- Climbing inclines with load / Without load
- 5 / 7 %
- Width of the fork carriage
- 690 mm
- Types of front wheels / steering wheels
- Polyurethane / Polyurethane
- Number of wheels
- 1x steering / 2x front wheels
- Empattement
- 1184 mm
