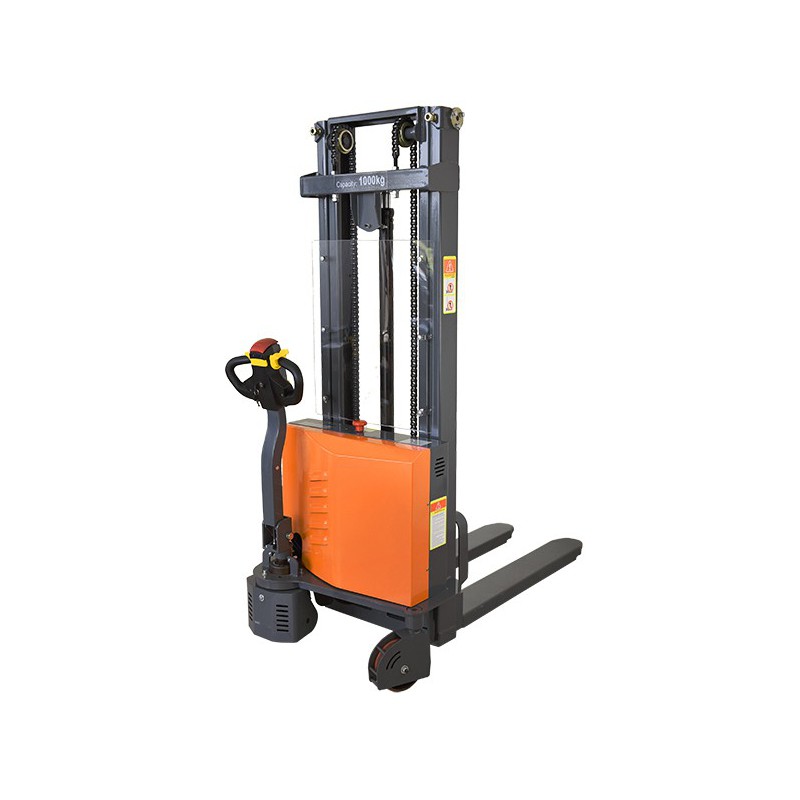

Light Electric Pallet Truck with Mast 1000 kg
Indeks: 407237
Quantity: 0
State: Inaccessible
Product Review
-
Reviews (0)
-
Latest
-
Latest
The modern pallet truck from the Mini series is an ideal solution for light-duty tasks. The pallet truck is equipped with an automatic voltage cut-off system. Its sturdy construction is based on four swiveling wheels, enhancing the machine's stability. The lever for controlling the lift is positioned laterally to improve visibility and control while driving. The truck features a built-in charger for convenient mobile charging.
The highly durable mast is equipped with laterally mounted chains, providing a wide-angle field of view. Thanks to its compact size, the truck has a small turning radius, making it suitable for tight spaces.
Ask about product
Technical informations
- Load capacity
- 1000 kg
- Center of gravity of the load
- 600 mm
- Overall length
- 1770 mm
- Overall width
- 820 mm
- Lifting height
- 3300 mm
- Minimum fork height
- 95 mm
- Fork spread
- 560 mm
- Turning radius
- 1430 mm
- Drive
- electric
- Equipped with a platform for the operator
- no
- Lowering
- electric
- Lifting
- electric
- Weight with battery
- 547 kg
- Fork width
- 160 mm
- Fork length
- 1120 mm
- Minimum width of the working corridor for a pallet of 800x1200 mm
- 2175 mm
- Maximum speed with load/without load
- 2.5/3.0 km/h
- Fork roller dimensions
- 80x60 mm
- System of rollers and wheels
- 1x steering wheel, 1x side wheel, 4x front wheels
- Wheel tread material
- poliuretan
- Dimensions of side wheels
- 180x50 mm
- Type of break
- electromagnetic
- Propulsion motor
- 0,65 Kw
- Lifting motor
- 2,2 kW
- Battery capacity
- 75 Ah
- Technology of battery
- Gel
- Number of installed batteries
- 2 pcs.
- Steering system
- DC
- Max lifting speed with load/without load
- 75/150 mm/s
- Max lowering speed with load/without load
- 145/80 mm/s
- Maximum mast height
- 3800 mm
- Minimum mast height
- 2180mm
- Dimensions of the steering wheel
- 220x70 mm
- CE Declaration of Conformity
- yes
- Guarantee
- 12 months
- Voltage
- 24V
- Safety certificate
- yes
