Alternator for Toyota 7FG, 8FG trucks, 4Y, 5K engines

Indeks: TA1110

Quantity: 10

State: Available

£49.18 brutto

£49.18 netto

Product compliance details: Manufacturer responsible for the product

Product safety

JAZGOT

Manufacturer

Safety Information

In accordance with Regulation (EU) 2023/988 on General Product Safety (GPSR), below are the rules for the safe use of the alternator for forklift trucks.

Application

  • Part of the forklift’s electrical system, responsible for generating electricity and charging the battery during engine operation.
  • Powers the electrical system and vehicle components.

Hazards

  • Risk of electric shock if handled improperly or when working with the engine running.
  • Possible damage to the electrical system if connected incorrectly.
  • Risk of overheating and fire due to short circuit, faulty voltage regulator or damaged cables.
  • Risk of mechanical injury from the rotating pulley of the alternator.

Operating conditions

  • Use only alternators that match the forklift’s technical specifications.
  • Do not use damaged, burnt, or worn components.
  • Protect from excessive moisture and dirt.

Installation and connection

  • Installation should be carried out by qualified service personnel.
  • Disconnect the battery and ensure the wiring is free of short circuits before connection.
  • Ensure proper belt tension – too loose or too tight may damage the alternator.
  • Connect cables acc
Compare
Rating:
(0)

Product Review

Average rating

0.0
0 Review
★★★★★ Excellent 0
★★★★☆ Good 0
★★★☆☆ Medium 0
★★☆☆☆ Poor 0
★☆☆☆☆ Terrible 0

  • Reviews (0)
    • All reviews (0)
    • Has image/video (0)
    • Excellent (0)
    • Good (0)
    • Medium (0)
    • Poor (0)
    • Terrible (0)
  • Latest
    • Latest
    • Oldest
    • High rating
    • Low rating
    • Helpful
  • Latest
    • Latest
    • Oldest
    • Helpful

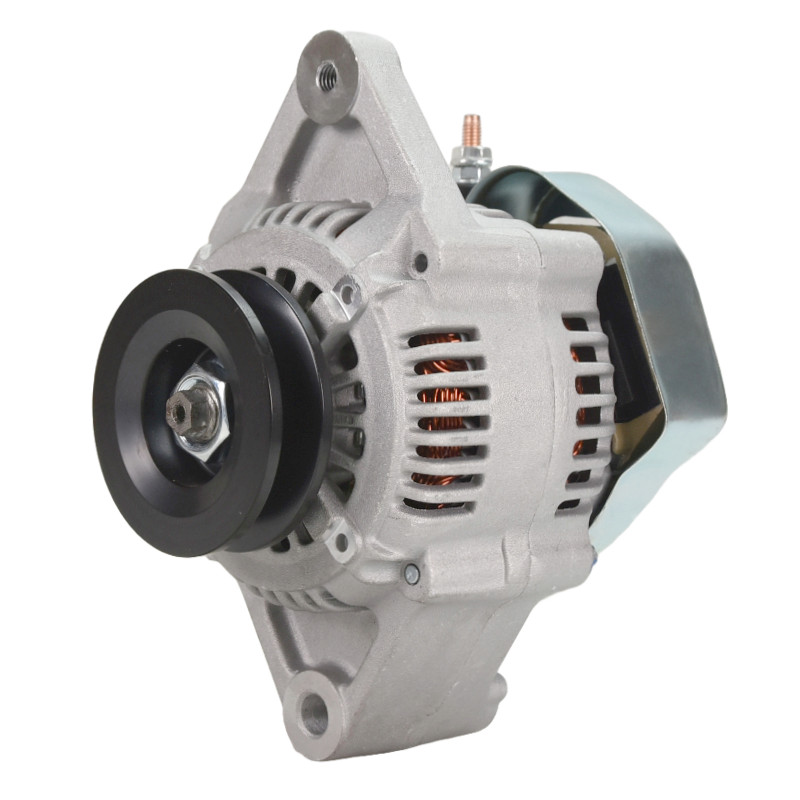

Alternator for Toyota 7FG / 8FG Forklift – 12V 50A, 4Y and 5K engines

This alternator is designed for Toyota 7FG and 8FG forklifts equipped with 4Y and 5K engines (petrol / LPG). The 12V system and 50A output match the electrical setup used in these units.

OEM number: 27060-78158-71.

Construction

The housing is made of aluminum. Its shape and mounting layout follow the design used in 4Y and 5K engines, making it easier to fit into the existing system.

The voltage regulator and fan are integrated into a single unit.

At the rear, you will find:

  • electrical connector (plug type)
  • power output terminal (threaded stud)

Mounting

A standard two-point mounting system is used:

  • the lower mounting point acts as a pivot
  • the upper bracket allows belt tension adjustment

The distance between mounting holes is 160 mm, with diameters of 6 mm and 10 mm.

This setup matches the configuration used in these engines, so installation does not require any modifications to the forklift.

Pulley

A standard pulley without an overrunning clutch is used. It works with the belt drive system found in 4Y and 5K engines.

Fitment

Before installation, it is recommended to check:

  • mounting point layout
  • connector type
  • pulley design

The most reliable way to ensure proper fitment is to compare the OEM number and visual appearance with the removed alternator.

Technical specifications

Voltage 12V
Current 50A
OEM number 27060-78158-71
Type with internal regulator and fan
Electrical connector plug
Power output threaded stud
Mounting two-point
Hole spacing 160 mm
Hole diameter 6 mm / 10 mm
Pulley standard, without overrunning clutch
Housing aluminum

Ask about product

Please fill below informations. Customer service will contact with You soon as is possible.

* Required fields

Technical informations

Producer
Jazgot
CE Declaration of Conformity
yes
Guarantee
12 months
Mounting hole spacing
160 mm
Application in the model of the truck
Toyota 7 / Toyota 8
Application in the engine model
Toyota 4Y
Toyota 5K
Hole diameter
6 mm
10 mm
Brand of pushchair
Toyota
Attention
Please purchase with consideration. The goods are sealed. Once the seal has been removed, the amount of the refund may be reduced.
