Toyota 7/8F truck alternator 12V, 50A,, 1DZ engine, diesel

Indeks: TA1129

Quantity: 51

State: Available

£42.77 brutto

£42.77 netto

Product compliance details: Manufacturer responsible for the product

Product safety

JAZGOT

Manufacturer

Warnings and safety information

  • CE Mark
    CE Mark

    Has the CE mark (complies with EU standards).

Safety Information

In accordance with Regulation (EU) 2023/988 on General Product Safety (GPSR), below are the rules for the safe use of the alternator for forklift trucks.

Application

  • Part of the forklift’s electrical system, responsible for generating electricity and charging the battery during engine operation.
  • Powers the electrical system and vehicle components.

Hazards

  • Risk of electric shock if handled improperly or when working with the engine running.
  • Possible damage to the electrical system if connected incorrectly.
  • Risk of overheating and fire due to short circuit, faulty voltage regulator or damaged cables.
  • Risk of mechanical injury from the rotating pulley of the alternator.

Operating conditions

  • Use only alternators that match the forklift’s technical specifications.
  • Do not use damaged, burnt, or worn components.
  • Protect from excessive moisture and dirt.

Installation and connection

  • Installation should be carried out by qualified service personnel.
  • Disconnect the battery and ensure the wiring is free of short circuits before connection.
  • Ensure proper belt tension – too loose or too tight may damage the alternator.
  • Connect cables acc
Compare
Rating:
(1)

Product Review

Average rating

5.0
1 Review
★★★★★ Excellent 1
★★★★☆ Good 0
★★★☆☆ Medium 0
★★☆☆☆ Poor 0
★☆☆☆☆ Terrible 0

  • Reviews (1)
    • All reviews (1)
    • Has image/video (0)
    • Excellent (1)
    • Good (0)
    • Medium (0)
    • Poor (0)
    • Terrible (0)
  • Latest
    • Latest
    • Oldest
    • High rating
    • Low rating
    • Helpful
  • Latest
    • Latest
    • Oldest
    • Helpful

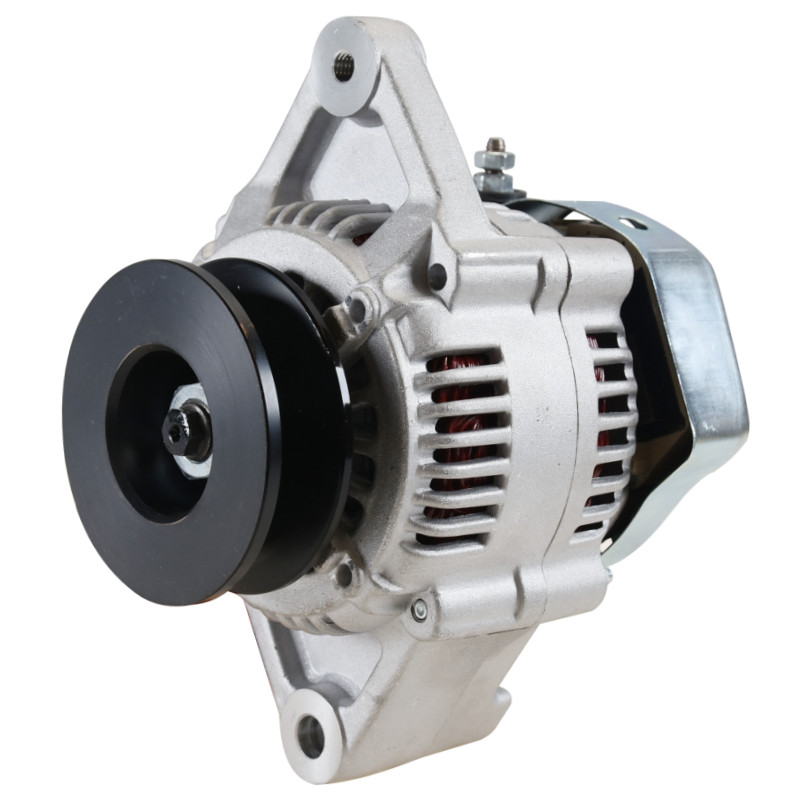

Forklift Alternator Toyota 7/8F – 12V 50A, 1DZ diesel engine

This alternator fits Toyota 7 and 8 series forklifts equipped with the 1DZ diesel engine. The 12V and 50A parameters match the electrical system used in these models.

OEM numbers: 27060-78203-71, 27060-78202-71.

Construction

The housing is made of aluminum. The design matches the mounting system used in the 1DZ engine, which allows installation without modifying the mounting points.

The alternator has an internal voltage regulator and fan.

At the rear of the housing, there are:

  • electrical connector (2-pin plug)
  • power output terminal (stud with nut)

Mounting

The alternator is mounted using a two-point system:

  • lower mounting point acts as the pivot
  • upper bracket allows belt tension adjustment

This setup matches the system used in the 1DZ engine, so installation does not require any modifications to the forklift.

Pulley

The alternator is equipped with a standard pulley (no overrunning clutch), designed to work with the belt system used in this engine.

Fitment

Before installation, it is recommended to check:

  • mounting points
  • connector type
  • pulley type

The most reliable way to ensure proper fitment is to compare the OEM numbers and the visual appearance with the removed unit.

Technical specifications

Voltage 12V
Current 50A
OEM numbers 27060-78203-71, 27060-78202-71
Type with internal regulator and fan
Electrical connector 2-pin plug
Output terminal stud with nut
Mounting two-point
Pulley standard (no clutch)
Housing aluminum

Ask about product

Please fill below informations. Customer service will contact with You soon as is possible.

* Required fields

Technical informations

Producer
Jazgot
Type of petrol
Diesel
CE Declaration of Conformity
yes
Guarantee
12 months
Voltage
12 V
Application in the model of the truck
Toyota 7 / Toyota 8
Application in the engine model
Toyota 1DZ
Brand of pushchair
Toyota
Attention
Please purchase with consideration. The goods are sealed. Once the seal has been removed, the amount of the refund may be reduced.
