Alternator G221, Balkancar, Perkins D2500, 3900,

Indeks: 405088

Quantity: 4

State: Available

£79.61 brutto

£79.61 netto

  • Total sales: 13

Product compliance details: Manufacturer responsible for the product

Product safety

JAZGOT

Manufacturer

Warnings and safety information

  • CE Mark
    CE Mark

    Has the CE mark (complies with EU standards).

Safety Information

In accordance with Regulation (EU) 2023/988 on General Product Safety (GPSR), below are the rules for the safe use of the alternator for forklift trucks.

Application

  • Part of the forklift’s electrical system, responsible for generating electricity and charging the battery during engine operation.
  • Powers the electrical system and vehicle components.

Hazards

  • Risk of electric shock if handled improperly or when working with the engine running.
  • Possible damage to the electrical system if connected incorrectly.
  • Risk of overheating and fire due to short circuit, faulty voltage regulator or damaged cables.
  • Risk of mechanical injury from the rotating pulley of the alternator.

Operating conditions

  • Use only alternators that match the forklift’s technical specifications.
  • Do not use damaged, burnt, or worn components.
  • Protect from excessive moisture and dirt.

Installation and connection

  • Installation should be carried out by qualified service personnel.
  • Disconnect the battery and ensure the wiring is free of short circuits before connection.
  • Ensure proper belt tension – too loose or too tight may damage the alternator.
  • Connect cables acc
Compare
Rating:
(0)

Product Review

Average rating

0.0
0 Review
★★★★★ Excellent 0
★★★★☆ Good 0
★★★☆☆ Medium 0
★★☆☆☆ Poor 0
★☆☆☆☆ Terrible 0

  • Reviews (0)
    • All reviews (0)
    • Has image/video (0)
    • Excellent (0)
    • Good (0)
    • Medium (0)
    • Poor (0)
    • Terrible (0)
  • Latest
    • Latest
    • Oldest
    • High rating
    • Low rating
    • Helpful
  • Latest
    • Latest
    • Oldest
    • Helpful

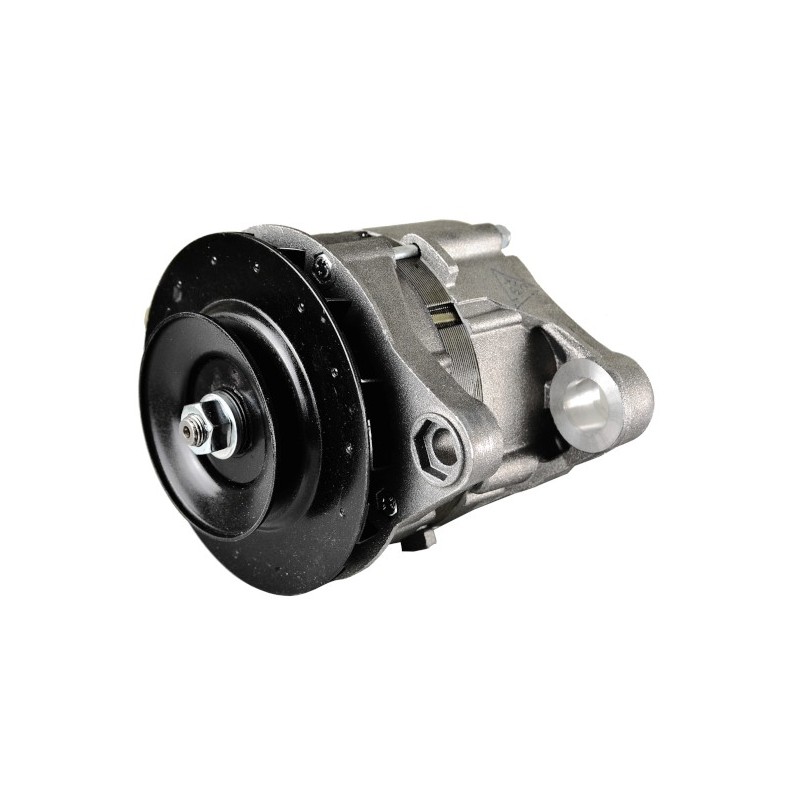

Alternator G221 for Bułgar Forklifts DV1661, DV1733, DV1786, DV1792

The alternator is designed for Bułgar (Balkancar) forklift trucks of models DV1661, DV1733, DV1786 and DV1792. It is a replacement for the units used in these machines and corresponds to the design of the G221 alternator.

It operates in a 12V system and generates a charging voltage of approximately 14V with a current of around 40–45A.

The alternator does not have a built-in voltage regulator. For proper operation, an external regulator compatible with the vehicle’s electrical system is required.

Construction and design

The alternator housing is made of aluminium.

The pulley works with the V-belt used in Perkins D2500 and Perkins D3900 engines.

The design is adapted for use with an external voltage regulator.

Application

The alternator fits Bułgar (Balkancar) forklift trucks:

  • DV1661
  • DV1733
  • DV1786
  • DV1792

Used in machines equipped with Perkins D2500 and Perkins D3900 engines.

Selection and installation

The alternator should be selected as model G221.

Before installation, check:

  • mounting point positions
  • pulley diameter and type
  • electrical connection type
  • compatibility with the used voltage regulator

A mismatch of the regulator prevents proper charging.

Technical specifications

Type Alternator
Designation G221
System 12V
Charging voltage approx. 14V
Charging current approx. 40–45A
Voltage regulator external
Application Bułgar DV1661, DV1733, DV1786, DV1792
Engines Perkins D2500, Perkins D3900

Ask about product

Please fill below informations. Customer service will contact with You soon as is possible.

* Required fields

Technical informations

Producer
Jazgot
Model
G221
Piece number
26800 0000
CE Declaration of Conformity
yes
Guarantee
12 months
Application in the model of the truck
DV1661
DV 1733
DV1786
DV1792
Application in the engine model
Perkins D2500
Perkins D3900
Brand of pushchair
Balkancar
Attention
Please purchase with consideration. The goods are sealed. Once the seal has been removed, the amount of the refund may be reduced.
